Advanced Field Gas Processing

Hexagon Arrow 02
Hexagon Arrow 02
Fs Pointer Down
Frack Shack Ng Sidekick
Diamond Yellow Gradient

Gas Processing Solution

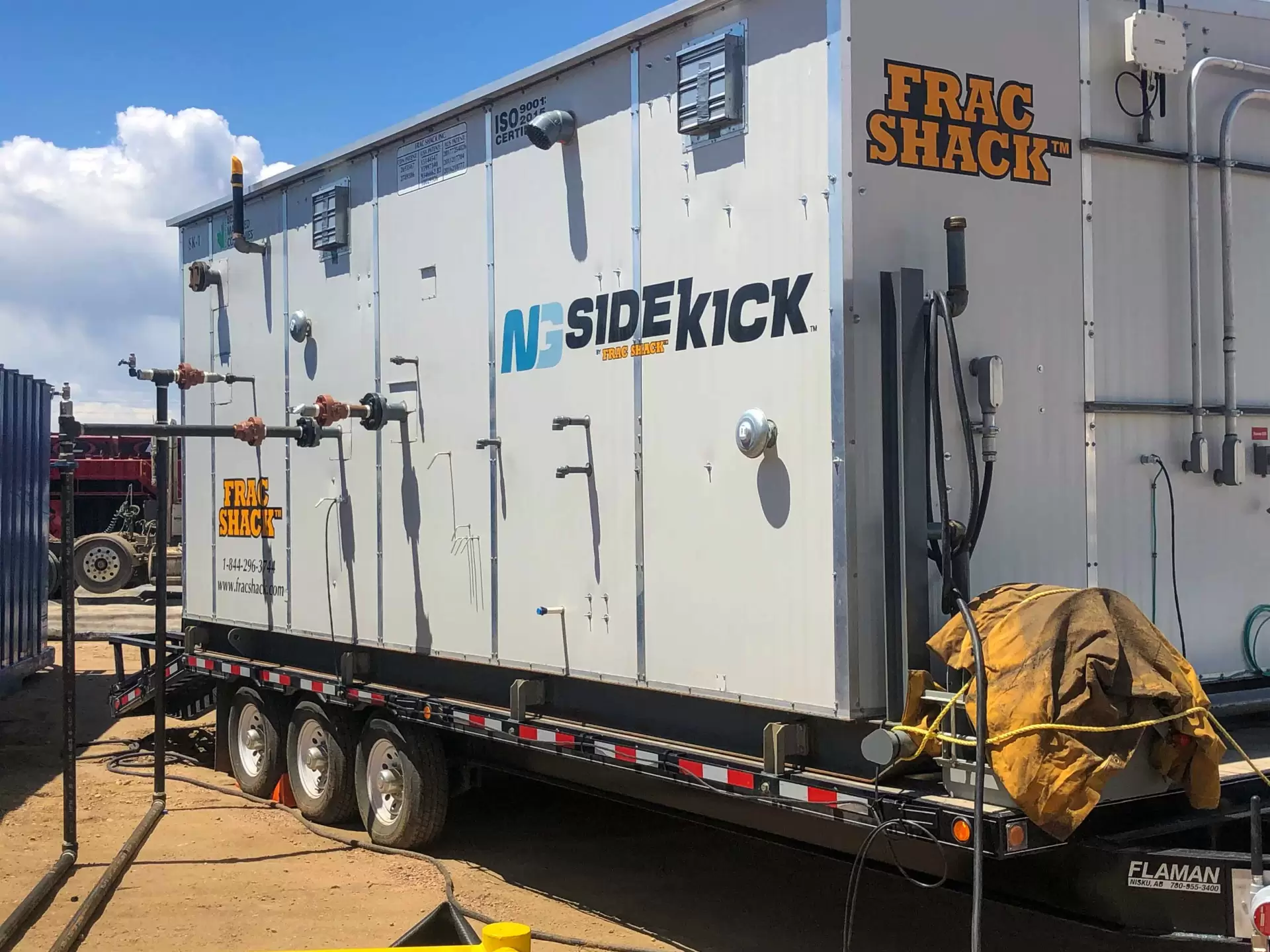

The NG SideKick™ depressurizes, heats and removes liquids and hydrocarbons from field natural gas to ensure the gas is safe and available for use in any natural gas or bi-fuel engine on a hydraulic fracturing location.

This technology enables Frac Shack’s customers to use their own energy on-site, reducing the need to flare off clean burning natural gas.

Ng Sidekick Super Logo

Options

Choose the Bi-Fuel FracFueler™ for automated frac fueling of diesel and natural gas. See your options below:

NG SideKick

Ng Sidekick Logo

20 diesel lines

Optional onboard diesel storage up to 30,000 litres/7,900 gallons

Diesel max flow rate: 45 L/min/line

Diesel filtration: 30 micron

53' trailer

Application Field Gas (BTU up to 1200), Completions, Drilling, Heating
Liquids Storage Capacity 500 Gallon
Heating Capacity 275,000 BTU/HR
Gas Volume Throughput
(Inlet Pressure)
5.5 MMSCFD
(@600 PSI)*
Dynamic Data Management (Portal 2.0) YES
Coalescent Filter YES
Pressure Reduction YES
Automation YES
Site Trailer Footprint 8.5' x 34'
Hexagonal
Get A Quote

SK Solo

Ng Sidekick Super Logo

24 - 28 diesel lines

Optional onboard diesel storage up to 30,000 litres/7,900 gallons

Diesel max flow rate: 45 L/min/line

Diesel filtration: 30 micron

53' trailer

Application Field Gas (BTU up to 1200), Completions, Drilling, Heating
Liquids Storage Capacity 500 Gallon
Heating Capacity 150,000 BTU/HR
Gas Volume Throughput
(Inlet Pressure)
2.59 MMSCFD
(@1,200 PSI)*
Dynamic Data Management (Portal 2.0) YES
Coalescent Filter YES
Pressure Reduction YES
Automation YES
Site Trailer Footprint 8.5' x 24'
Hexagonal
Get A Quote

SK Lite

Ng Sidekick Super Logo

28 diesel lines

No onboard diesel storage (ties into larger peripheral fuel storage on location)

Diesel max flow rate: 45 L/min/line

Diesel filtration: 30 micron

53' trailer

Application Field Gas (BTU up to 1000), Completions, Drilling, Heating
Liquids Storage Capacity 300 Gallon
Heating Capacity 250,000 BTU/HR
Gas Volume Throughput
(Inlet Pressure)
6 MMSCFD (@650 PSI)*
3.5 MMSCFD (@400 PSI)*
Dynamic Data Management (Portal 2.0) NO
Coalescent Filter NO
Pressure Reduction YES
Automation NO
Site Trailer Footprint 8.5' x 41'
Hexagonal
Get A Quote

Super SK

Ng Sidekick Super Logo

28 diesel lines

No onboard diesel storage (ties into larger peripheral fuel storage on location)

Diesel max flow rate: 45 L/min/line

Diesel filtration: 30 micron

53' trailer

Application Turbine, Electric Fleets, High Pressure Flow
Liquids Storage Capacity 500 Gallon
Heating Capacity 285,000 BTU/HR
Gas Volume Throughput
(Inlet Pressure)
8.5 MMSCFD
(@1,200 PSI)*
Dynamic Data Management (Portal 2.0) YES
Coalescent Filter YES
Pressure Reduction YES
Automation YES
Site Trailer Footprint 8.5' x 53'
Hexagonal
Get A Quote
Ng Sidekick Logo

Benefits

Hexagon Icon Blue
ISO 9001:2015 REGISTERED
Every critical task is tracked and managed, meeting ISO standards.
Hexagon Icon Blue
SOPHISTICATED DATA ANALYTICS
Track fuel consumption, substitution rates, and site productivity with Frac Shack’s state-of-the-art data capture system.
Hexagon Icon Blue
EXCESS LIQUIDS HANDLING
The NG SideKickTM can handle up to 973 barrels of liquid per day. If liquids exceed the SideKick’s 500-gallon storage tank, we can tie into a larger external storage vessel or pipe to a nearby facility.
Hexagon Icon Blue
INTEGRATED SAFETY FEATURES
The NG SideKick™, prioritizing safety, comes equipped with LEL monitors, ESDs, and Fire Eye sensors, ensuring the highest level of safety for all personnel on location.
Hexagon Icon Blue
COST SAVINGS
Maximizing nature's potential, we deliver cost savings to our customers through significant reductions in diesel consumption.

The Most Sophisticated Field Gas Processing Unit Available Today

Smarter
Greener
Safer
Cleaner

Smarter

Frac Shack's NG SideKick™ revolutionizes on-pad gas processing by transforming in-field natural gas into a safe, usable state. This sophisticated unit adapts to evolving industry needs, ensuring multiple on-location applications with improved efficiency.

Greener

The NG SideKick™ leads in carbon-conscious field gas conditioning. Paired with the Bi-Fuel FracFueler™, it represents Frac Shack's dedication to innovative solutions for a sustainable and environmentally responsible energy industry.

Safer

Safety was a primary focus when developing the NG SideKick™. The unit is equipped with LEL monitors, ESDs, and Fire Eye sensors to ensure the safety of every person on location.

Cleaner

The use of natural gas significantly reduces the need for diesel fuel, with substitution rates from 40 – 70% on large frac sites. The Generation 2 NG SideKick™ has increased capacity to power a natural gas turbine used for electric frac fleets.
Hexagonal
View Spec Sheet

The

Frack Shack Logo

Advantage

Portal Icon

Online
Customer Portal

Fuel Icon

Remote
Fuel Monitoring

Engineering Icon

Engineering &
Field Support

Turbine Icon

Turbine
Flow Meters

Global Reach Icon

Global Reach with
Local Service

Your Sidekick in Innovative
Fueling Solutions

Optimize your operations with NG SideKick™, the industry's best in field gas processing. Seamlessly integrating into existing systems, this unit revolutionizes safety, efficiency, and sustainability in fueling.
